Problem
The stove has a complete power loss condition.
Symptoms may include:
- Blank display
- No response from the control panel
- No startup activity
- No indicator lights
- No audible response when buttons are pressed
Step 1 – Verify Incoming Power
Confirm:
- Stove is plugged in securely
- Wall outlet has power
- Circuit breaker has not tripped
- Power strip (if used) is functioning
Test the outlet with another device if needed.
Step 2 – Inspect the Fuse
Disconnect power before servicing.
Locate and inspect the fuse:
Check for:
- Blown fuse element
- Burn marks
- Loose fuse fitment
Replace if necessary using the proper specification.
Step 3 – Inspect Electronic Connections
Verify all electrical connections are secure.
Inspect:
- Main power harness
- Control board connections
- Switch block wiring
- Internal connectors
Look for:
- Loose terminals
- Burned connectors
- Heat damage
- Separated contacts
Advanced Testing – Toggle Switch Bypass Test
Advanced diagnostic procedure
Only perform this step if previous checks do not restore power.
Procedure
- Unplug the stove.

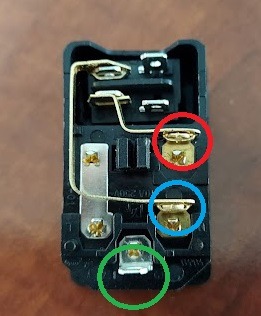

- Remove the inside cover from the switch block.
- Expose the internal connections.
- Remove the connecting metal filaments.
- Connect wire spade connectors directly to the appropriate terminals.
Wire mapping:
| Wire | Connection |
|---|---|
| Yellow striped | Green |
| Blue/white | Blue |
| Red | Red |
This temporarily bypasses the toggle switch while retaining fuse protection.
If power returns after bypassing, the switch assembly may be faulty.
Important: Restore normal wiring after testing.
Possible Cause
A common cause of total power loss is failure within the toggle switch assembly.
Over time, internal contacts may heat, separate, or lose continuity, preventing power from reaching the control system.
Video Troubleshooting Series
Part 1 – Initial Diagnosis
Part 2 – Continued Troubleshooting
Part 3 – Component Inspection / Repair
(Recommend embedding these directly in Zendesk.)
When to Contact Support
Contact support if:
- Fuse repeatedly fails
- Wiring damage is found
- Bypass test restores power
- Power loss persists after inspection
